Display size : 12 Inch

Sonar module : Optional

customers like: Resolution

by Michael H.

great A really great device. Good resolution. Easy to use. It's hardly better. Unfortunately very hard to get!

Start into the new dimension of navigation Dear all, When someone like me, who has been on the water for over 50 years, is suddenly confronted with high technology in terms of electronics, it is like entering a new era. Long story short, the device being reviewed here has exceeded my wildest expectations. It is as simple to operate as an iPad and the menu navigation is also child's play. The respective submenus reveal a variety of options that are unparalleled. It is a shame that Raymarine does not offer an upgrade frame from the C120W to the Axiom 12. So I built the frame myself out of stainless steel. See picture. Everything worked straight away and delivered the best results. I would not order the map I ordered from another source (Lighthouse from Raymarine) again, even though it is integrated into the system and is updated with software updates, I prefer the Navionics setting because the maps are more precise and have more information, especially regarding buoys and depth information. Otherwise, the season and the first trips can come. Best wishes Jürgen Albert Oberhausen

by Jürgen A.

by Oktay A.

by Roel J. B.

SVB item number 26180
EAN 723193836958
Manufacturer no. E70638
Description Raymarine - AXIOM+ 12
Series AXIOM+
Display size 12 Inch
Resolution 1280 x 800 px
Viewing angle 88 °
Screen brightness 1800 Nits
Operating voltage 12 V
Operating mode Touch screen
NMEA2000 Yes
NMEA0183 No
WiFi Yes
Bluetooth Yes
Ethernet / Network Yes
Radar capable Yes
Tablet control Yes
Sonar module Optional
Sonar type Numerical depth
Nautical chart support Yes
Sea Charts C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Installation width 302 mm
Installation height 205 mm
With transducer No
IP protection class IPX7

-5%

LIQUI MOLY Display Cleaner

only €9.95 (€99.50/ l)

NMEA2000 Starter Kit / Micro-C

only €133.95

-7%

RAYMARINE Adapter Plate C/E120 Classic to Axiom 12 / Axiom+ 12

only €104.95

RAYMARINE 3D Chirp Sonar Unit RVX1000

only €1,289.95

Featuring the new Lighthouse Dartmouth operating system and a blazing fast quad-core processor, as well as a large integrated memory, this multifunctional display boasts outstanding performance. Furthermore, like its predecessors, the AXIOM+ is expandable so its capabilities can grow as needed.

The new HydroTough™ display is significantly brighter than previous models and can be operated quickly and precisely under any conditions.

HydroTough™ display

The AXIOM+ series HydroTough™ IPS LCD display is 25% brighter than displays in previous series. Furthermore, the display is greater impact resistance and thanks to its nano coating, water and dirt simply rolls off. This allows the Raymarine AXIOM+ multifunction display.to be used precisely and quickly under all conditions.

Lightning-fast performance at the touch of a finger

Clear app icons make orientation easier, a simple swipe across the multifunctional display activates the sidebar with the data display.
Using drag and drop, the data fields can be positioned anywhere on the screen in different sizes.
The homepage with the user profile and personal configuration can be saved permanently on the device. With just a few finger touches you can take control via touchscreen.

The chartplotter can also be adapted to individual requirements. Clear menus also provide quick access to the various chart modes.
Simply placing the tip of your finger on the chart is enough to position the cursor.

New LightHouse Dartmouth operating system

Thanks to the new Raymarine LightHouse Dartmouth operating system, various colour settings can be selected to give you the best view by day or night.

In addition, numerous improvements in the dashboard view ensure that you always have an overview of all relevant data

Network & Connection

For integration into an existing network or creating a new network, the AXIOM units have NMEA2000 and Ethernet interfaces.
The devices also feature a microUSB port, integrated WiFi and Bluetooth.

The best charts

Raymarine's multifunction devices allow you to choose between charts from Navionics, C-Map and an extended Lighthouse chart selection.
The detailed grid and vector charts make coastal navigation very easy
and also contain options for 3D charts and satellite support.

Technical Data

Display size	12"
Resolution	1280 x 800
Display type	Multitouch with HydroTough (resistant coating)
Brightness	1800 nits
Viewing angle	88° top, bottom, left, right
Voltage	12 V DC (8 - 16 V DC)
Current consumption (watts)	15.48 W
Ethernet	Yes,1x port
NMEA2000	Yes,1x port
NMEA0183	No
SeaTalkNG	Adapter cable necessary
USB	1x USB mircoAB
WiFi	Yes
Bluetooth	Yes 4.0
GPS	Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou
Sonar	Optional
Radar	Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS	Yes, via NMEA2000
Chart compatibility	Navionics, C-MAP and Lighthouse
Card slot	1x
Autopilot operation	Evolution autopilot
Thermal image	FLIR AX8, M232, M300 series, M400, M500
Video/camera	Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Operating temperature	-25 to +55° C
Storage temperature	-30 to +70° C
Waterproof	IPX6 / IPX7
Dimensions	314 x 217 x 77 mm
Weight	2.72 kg
Included in delivery	Multifunction display, bracket, thumbscrews, suncover, seals, threaded screws, power and data cables, and documentation.

Depth / fish finder views

Depending on the connected transducer, the chartplotter can display the following depth views. The pure depth display refers to transducer data received via NMEA2000 interface. Some functions can be retrofitted via external modules.

Pure depth representation	Fish finder / CHIRP	Down vision	RealVision 3D

Charts

SD/Micro-SD	Compactflash	C-Card MAX orange	C-Card NT+ black

Compatible with the following charts:

C-MAP 4D	C-MAP 4D Full	C-MAP 4D Continental	Navionics+	Navionics Platinum+

Chart features:

Display size

12 Inch

Operating mode

Touch screen

Radar capable

Yes

Tablet control

Optional



MFD
Mounting bracket
Knurled screws (2x)
Sun cover
Sealing for surface/plate mounting
b) Rear mounting bracket
Documentation pack
M5x58 threaded bolts (4x)
M5 wing nuts (4x)
DeviceNet SeaTalking adapter cable 12 cm
Power/data cable (1.5 m power cable and 0.5 m NMEA 2000 cable)

Manual

PDF (2,94 MB)

Drawing

PDF (2,48 MB)

100% real reviews

5 (out of 6 ratings)

5 Stars

(6)

4 Stars

(0)

3 Stars

(0)

2 Stars

(0)

1 Stars

(0)

100% recommend SVB

Advantages
Connection options (1)
Resolution (1)
Screen brightness (1)
Operation (1)
Price/performance ratio (1)
Mounting/Installation (1)

by Roel J. B.

5/22/2026 Variant: 93905 in use on a Bavaria Yachtbau GmbH - Bavaria 40 Cruiser

This item was rated via MyBoat on Bavaria Yachtbau GmbH - Bavaria 40 Cruiser.

by Roel J. B.

5/22/2026 Variant: 26180 in use on a Bavaria Yachtbau GmbH - Bavaria 40 Cruiser

This item was rated via MyBoat on Bavaria Yachtbau GmbH - Bavaria 40 Cruiser.

by Oktay A.

5/5/2026 Variant: 26180 in use on a Lagoon Catamarans - Lagoon 421

This item was rated via MyBoat on Lagoon Catamarans - Lagoon 421.

by Jürgen A.

5/21/2024 Verified purchase Variant: 26180

Translated automatically
Show original text

Start into the new dimension of navigation

Dear all,

When someone like me, who has been on the water for over 50 years, is suddenly confronted with high technology in terms of electronics, it is like entering a new era.

Long story short, the device being reviewed here has exceeded my wildest expectations. It is as simple to operate as an iPad and the menu navigation is also child's play. The respective submenus reveal a variety of options that are unparalleled.

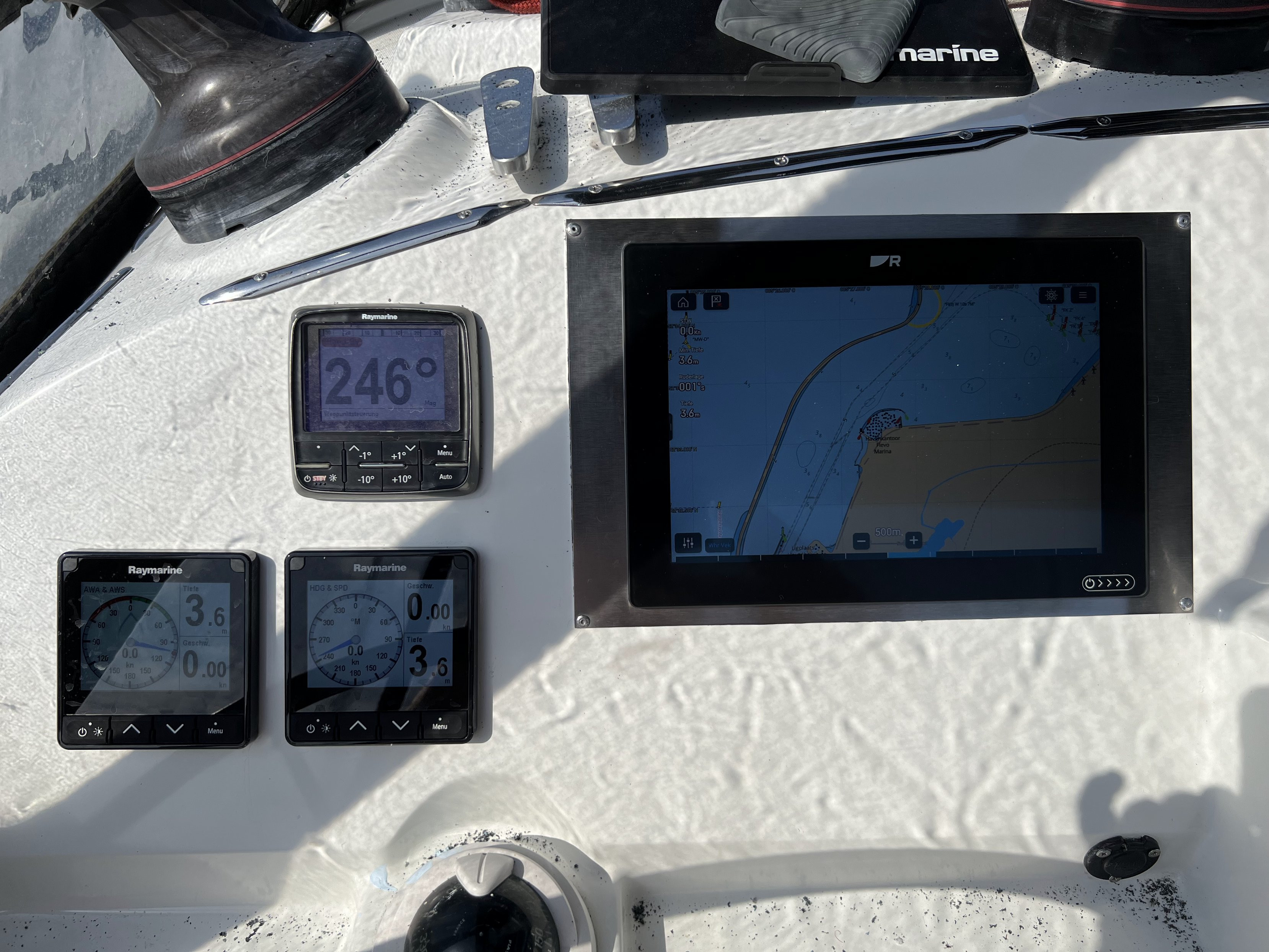

It is a shame that Raymarine does not offer an upgrade frame from the C120W to the Axiom 12. So I built the frame myself out of stainless steel. See picture.

Everything worked straight away and delivered the best results. I would not order the map I ordered from another source (Lighthouse from Raymarine) again, even though it is integrated into the system and is updated with software updates, I prefer the Navionics setting because the maps are more precise and have more information, especially regarding buoys and depth information.

Otherwise, the season
and the first trips can come.

Best wishes
Jürgen Albert
Oberhausen

Advantages
Connection options
Resolution
Screen brightness
Operation
Price/performance ratio
Mounting/Installation

Images for this rating

by Michael H.

10/31/2023 Variant: 93905

Translated automatically
Show original text

Top

I have 2 of them on my boat. Great devices!!!

Advantages
Connection options
Resolution
Screen brightness
Operation
Price/performance ratio
Mounting/Installation
