TILLER-LOCK

SVB item number: 29687

View Ratings (1)

View Ratings (1) Questions (1)

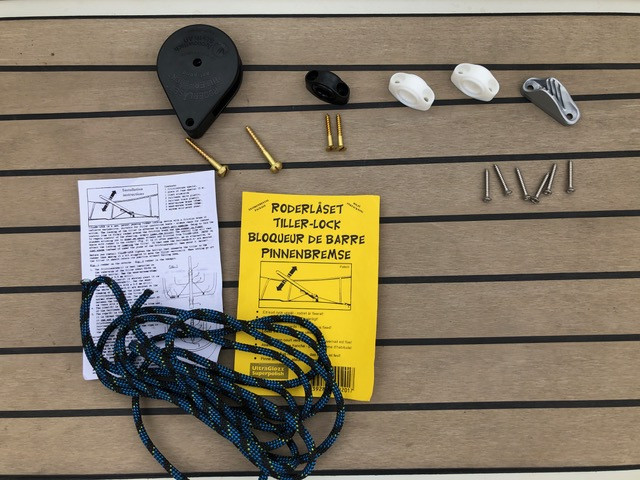

This picture shows the complete scope of delivery of the product

Is in 11 shopping baskets right now, grab yours now!

Has been sold 2 times in the last 7 days

TILLER LOCK is an infinitely variable rudder locking device that requires little space, is ready for instant action and suitable for virtually any tiller controlled boat. Supplied with line, cleat, fairleads, block and screws. Product details

only €45.95

VAT inc., ex-works

20 | in stock

Having issues?
If you are not redirected to PayPal, it could be due to your browser settings. Please check and if necessary deactivate the setting "Hide IP address" in the settings -> Safari -> Hide IP address. Please also check your browser for updates.

Are you already using this item?

Add to my boat now.

To wish list Compare

by Wolfgang D.

Reliable tiller lock Quickly mounted on the stern of a Rethana 27, lifting the tiller keeps the boat safely on course. The prerequisite for this is that the tiller stays up, it must be pulled tight in the suspension. My previous system - a clamp under the tiller - wore out the rope, this solution is convenient, the principle is based on a friction drum under tension. It can be solved quickly, in the harbor I let the rope out of the clamp. The third hand on board - I can recommend.

Read all product reviews

Product data

SVB item number 29687
EAN 7392812002017
Description TILLER-LOCK

Product details

TILLER LOCK is an infinitely variable rudder locking device that requires little space, is ready for instant action and suitable for virtually any tiller controlled boat. Lock the tiller by a short pull upwards. To regain control of the steering, the tiller must simply be lowered and the rudder can be moved once more. Steering tension can also be adjusted by raising the tiller until the desired friction-resistance is reached. Supplied with line, cleat, fairleads, block and screws.

Contents

1x 6 mm rope (length: 3 m)
1x block made of plastic
1x cleat made of aluminium
2x white plastic fairleads
1x black plastic fairlead
2x brass wood screws (30 mm)
2x brass wood screws (45 mm)
6x stainless steel screws(26 mm)

Installation instructions

Tighten the bolt between the tiller and rudder to make it a little sluggish to move the tiller vertically. The tiller should retain its position when you let go.

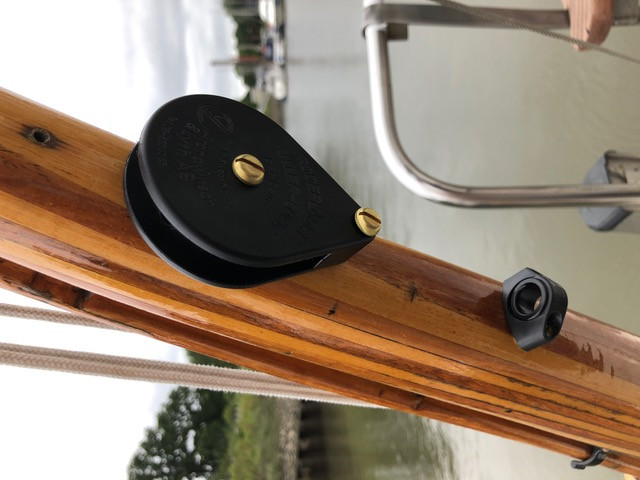

The block is best installed on the underside of the tiller, approx. 50-60 cm from the bolt. Use the wood screws (45 mm) and a 3.5 mm drill.
The black fairlead is mounted approx. 10 cm from the block. Use the wood screws (30 mm) and a 2.5 mm drill.
The white faileads are mounted on the coaming when the tiller is held in the normal position. The distance between the two fairleads should be approx. 85 cm. Use the stainless steel screws and a 2.5 mm drill.
The cleat is mounted approx. 10 cm from of the fairleads. Use the stainless steel screws and a 2.5 mm drill.
Tie the rope to one of the white fairleads that is not next to the cleat. Thread the rope through the black fairlead, then wind it around the block one and a half times, then back through the black fairlead and then through the other white fairlead, where it is finally secured with the cleat.
Adjust the rope so that the tiller lock causes no friction when steering with the tiller in normal position but still without letting the rope become too slack.

Documents

Manual

PDF (91,32 KB)

Product safety

What other SVB customers have to say

100% real reviews

1 customer reviews

5 (out of 1 ratings)

5 Stars

(1)

4 Stars

(0)

3 Stars

(0)

2 Stars

(0)

1 Stars

(0)

100% recommend SVB

Customer images (3) from all reviews

by Wolfgang D.

6/2/2023

Translated automatically
Show original text

Reliable tiller lock

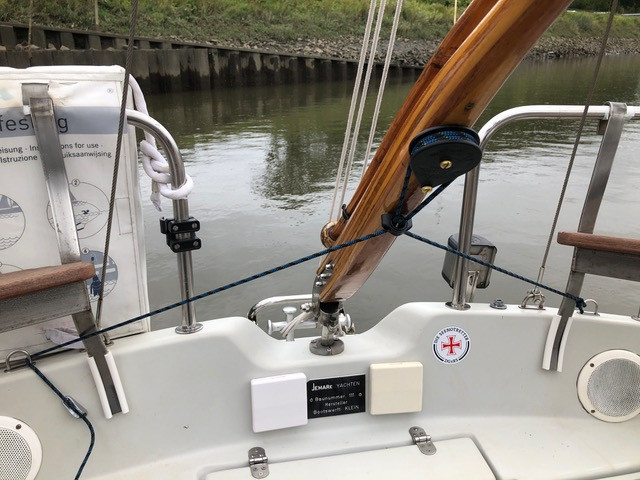

Quickly mounted on the stern of a Rethana 27, lifting the tiller keeps the boat safely on course. The prerequisite for this is that the tiller stays up, it must be pulled tight in the suspension.
My previous system - a clamp under the tiller - wore out the rope, this solution is convenient, the principle is based on a friction drum under tension. It can be solved quickly, in the harbor I let the rope out of the clamp.
The third hand on board - I can recommend.

Images for this rating
